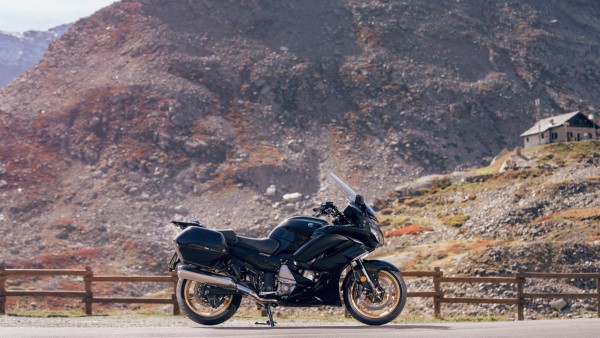

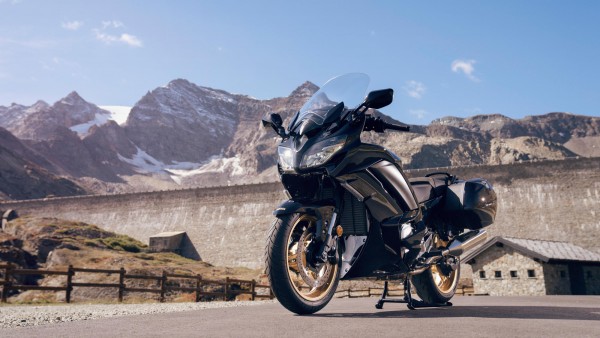

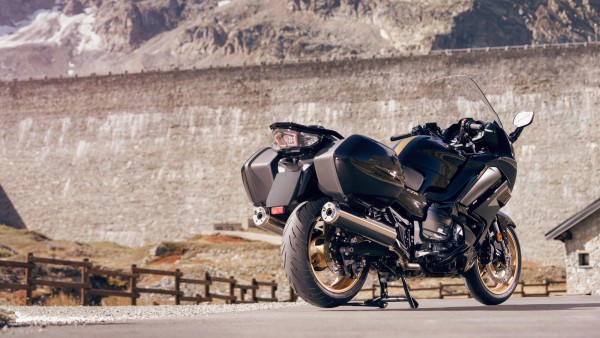

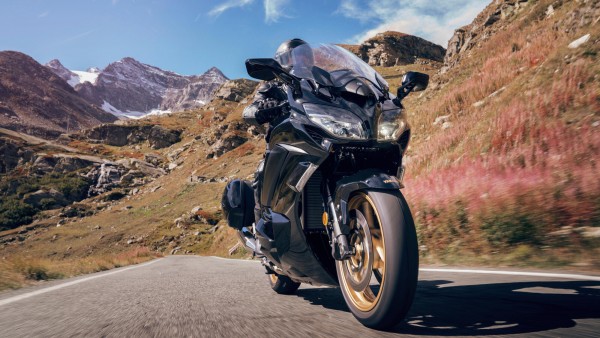

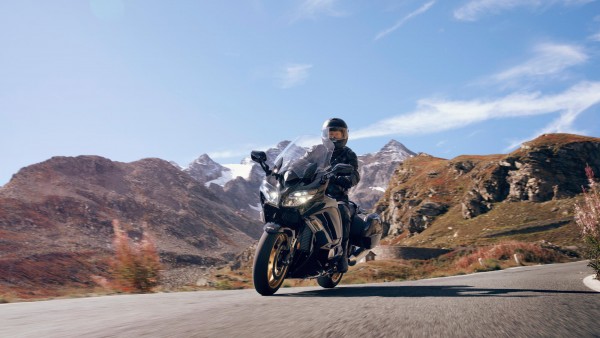

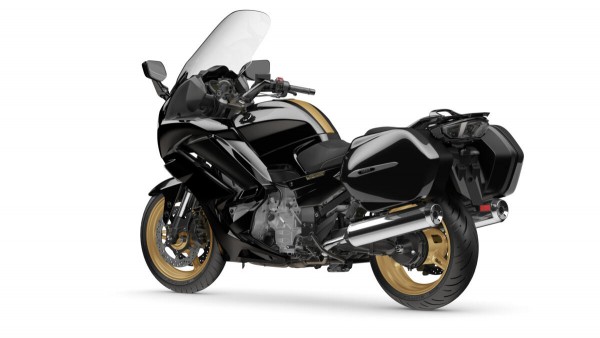

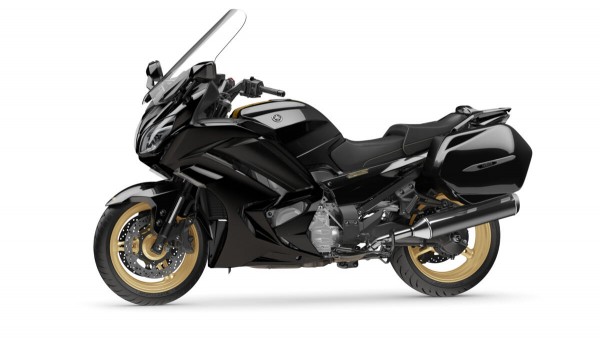

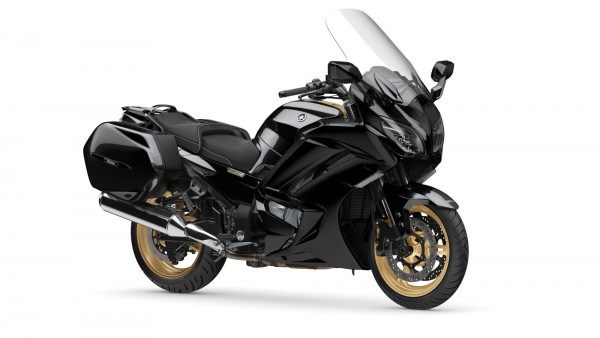

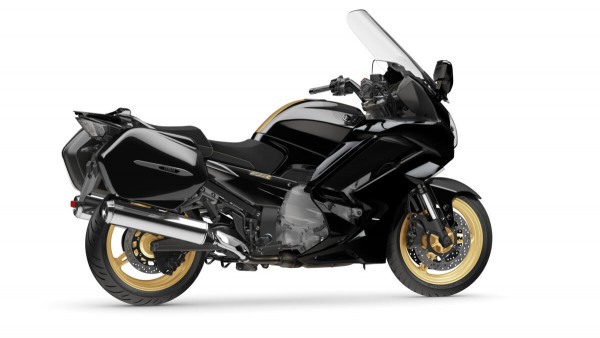

FJR1300AS Ultimate Edition motociklas

The legendary FJR1300 changed the Sport Touring world forever. And to mark two decades at the top, Yamaha introduce the FJR1300AS Ultimate Edition. Featuring the highest specification and a premium finish, this powerful long-distance motorcycle celebrates the FJR’s iconic status.

Download Factsheet

0,00 €
Su PVM

Legendary turns.

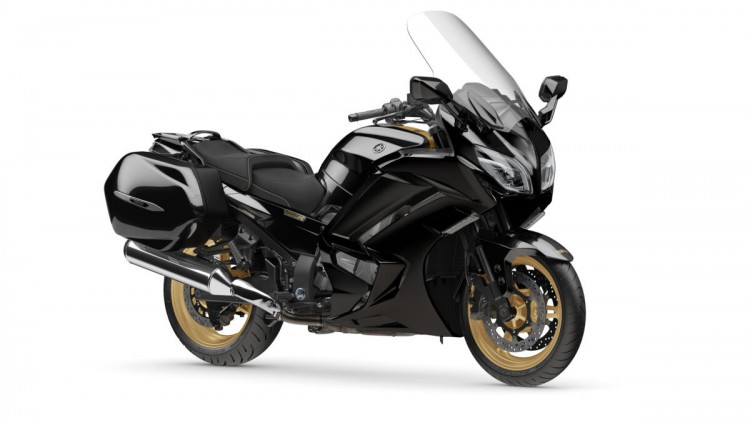

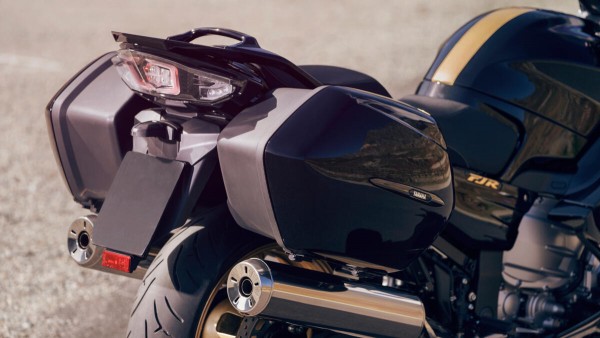

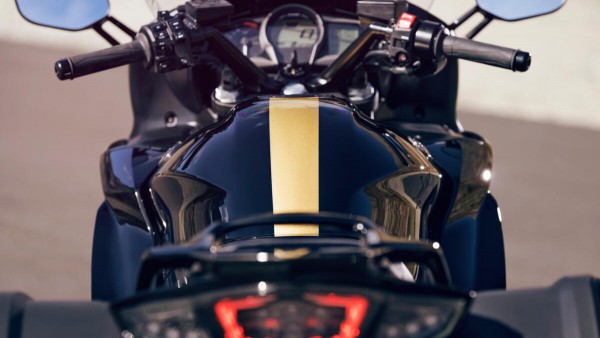

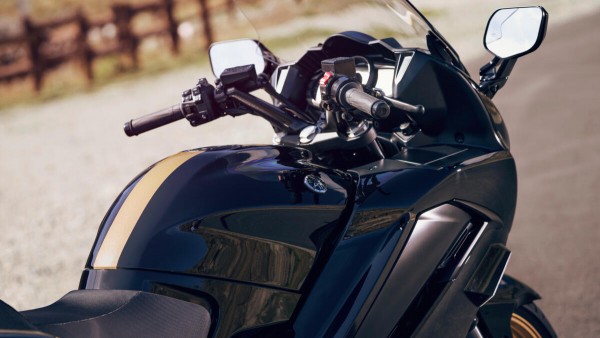

As a special tribute to this era and to show Yamaha’s appreciation to the FJR’s loyal customers, the Ultimate Edition is finished in black and gold – and equipped with a range of exclusive features including a high screen, wind deflectors and hard side cases with a black chrome strip.

The outstanding 1,298cc engine incorporates advanced electronics that give you precise control in varying conditions – and with its clutchless gear shift system and electronically-adjustable suspension featuring upside-down forks, the FJR1300AS Ultimate Edition is the definitive Sport Tourer.


DOWNLOAD FACTSHEET

At a glance

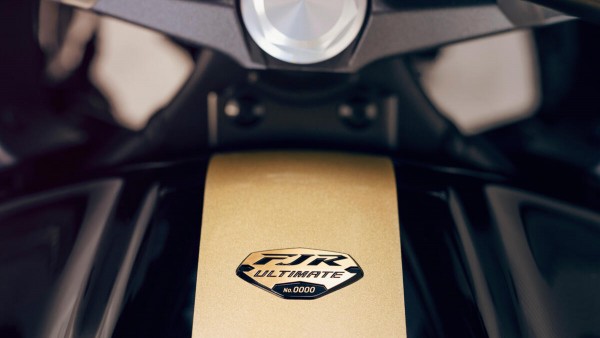

  • Exclusive Ultimate Edition model

  • Premium specification & black/gold finish

  • YCC-S clutchless gear shifting and 6-speed gearbox

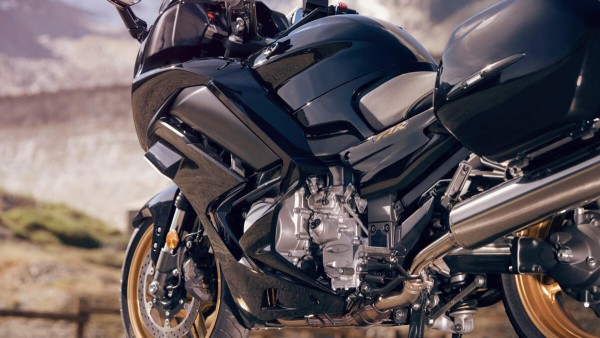

  • 1,298cc inline 4-cylinder engine with YCC-T

  • Electronically-adjustable suspension and USD forks

  • Fully adjustable ergonomics for added comfort

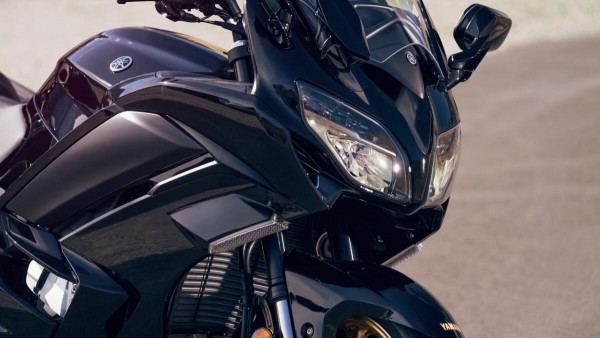

  • All round LED lights with cornering lights

  • Advanced electronic control systems

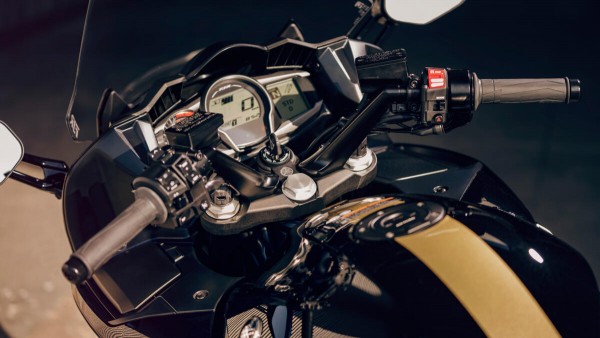

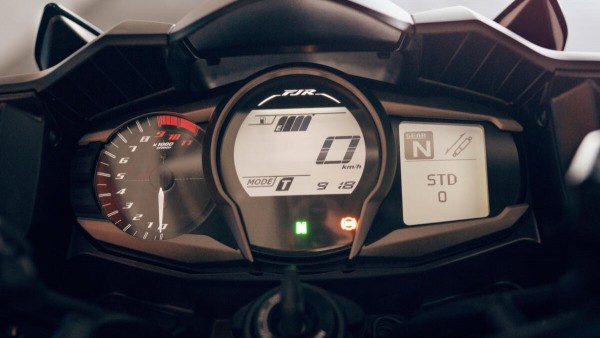

  • 3-part instrumentation

  • 25-litre fuel tank, shaft drive, side cases, 12V socket

Charakteristikos

Engine type
Liquid-cooled, 4-stroke, 4-valves, DOHC, Forward-inclined parallel 4-cylinder
Displacement
1,298cc
Bore x stroke
79.0 mm x 66.2 mm
Compression ratio
10.8 : 1
Maximum power
107.5kW (146.2PS) @ 8,000 rpm
Maximum Torque
138.0Nm (14.1kg-m) @ 7,000 rpm
N/A
Lubrication system
Wet sump
Ignition system
TCI
Starter system
Electric
Transmission system
Constant Mesh, 6-speed
Fuel consumption
6.2l/100km
CO2 emission
140g/km
Carburettor
Fuel Injection
Caster Angle
26º
Trail
109mm
Front suspension system
Upside-down telescopic fork, Ø48 mm tube, adjustable preload, compression and rebound damping
Rear suspension system
Swingarm, (Link type suspension)
Front travel
135 mm
Rear Travel
125 mm

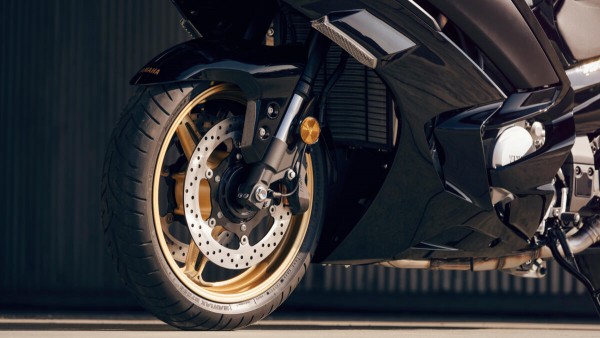

Front brake
Hydraulic dual disc, Ø320 mm
Rear brake
Hydraulic single disc, Ø282 mm
Front tyre
120/70 ZR17M/C (58W)
Rear tyre
180/55 ZR17M/C (73W)
Overall length
2,230 mm
Overall width
750 mm
Overall height
1,325/1,455 mm
Seat height
805/825 mm
Wheel base
1,545 mm
Minimum ground clearance
125 mm
Wet weight (including full oil and fuel tank)
296 kg
Fuel tank capacity
25litres
Oil tank capacity
4.9litres
Frame
Aluminium, Diamond Shaped
